Eino ADK: ChatModelAgent

ChatModelAgent Overview

Import Path

import "github.com/cloudwego/eino/adk"

What is ChatModelAgent

ChatModelAgent is a core prebuilt Agent in Eino ADK. It encapsulates interaction with LLMs and supports tools to accomplish complex tasks.

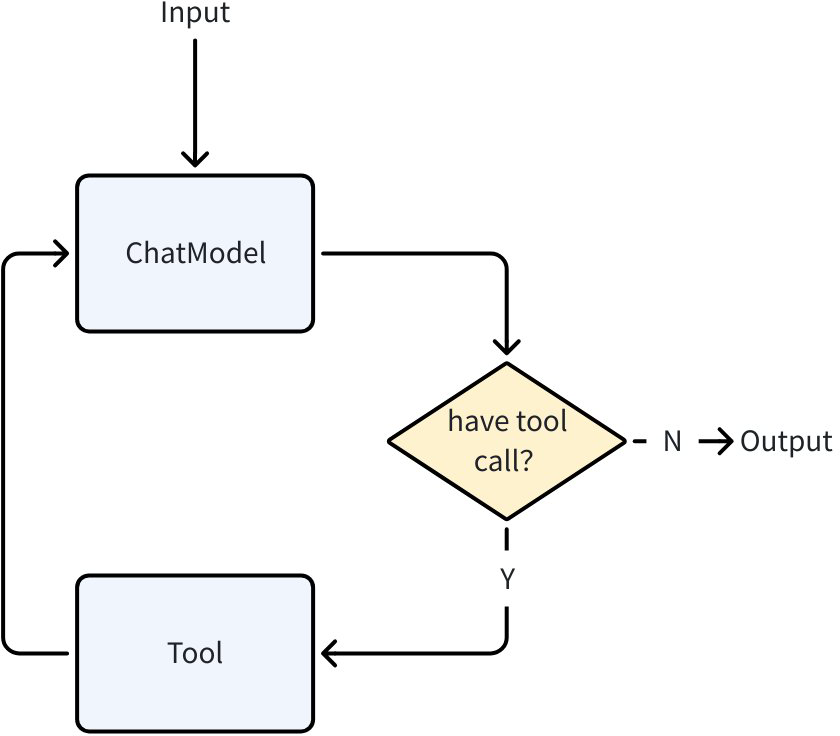

ChatModelAgent ReAct Mode

ChatModelAgent uses the ReAct pattern, designed to solve complex problems by letting the ChatModel perform explicit, step‑by‑step “thinking”. When tools are configured, its internal execution follows ReAct:

  • Call ChatModel (Reason)
  • LLM returns a tool‑call request (Action)
  • ChatModelAgent executes the tool (Act)
  • It sends the tool result back to ChatModel (Observation), then starts a new loop until the model decides no tool is needed and stops

When no tools are configured, ChatModelAgent falls back to a single ChatModel call.

Configure tools via ToolsConfig:

type ToolsConfig struct {
    compose.ToolsNodeConfig

    // Names of the tools that will make agent return directly when the tool is called.
    // When multiple tools are called and more than one tool is in the return directly list, only the first one will be returned.
    ReturnDirectly map[string]bool
}

ToolsConfig reuses Eino Graph ToolsNodeConfig. See: Eino: ToolsNode & Tool Guide

Configuration Fields

type ChatModelAgentConfig struct {
    // Name of the agent. Better be unique across all agents.
    Name string
    // Description of the agent's capabilities.
    // Helps other agents determine whether to transfer tasks to this agent.
    Description string
    // Instruction used as the system prompt for this agent.
    // Optional. If empty, no system prompt will be used.
    // Supports f-string placeholders for session values in default GenModelInput, for example:
    // "You are a helpful assistant. The current time is {Time}. The current user is {User}."
    // These placeholders will be replaced with session values for "Time" and "User".
    Instruction string

    Model model.ToolCallingChatModel

    ToolsConfig ToolsConfig

    // GenModelInput transforms instructions and input messages into the model's input format.
    // Optional. Defaults to defaultGenModelInput which combines instruction and messages.
    GenModelInput GenModelInput

    // Exit defines the tool used to terminate the agent process.
    // Optional. If nil, no Exit Action will be generated.
    // You can use the provided 'ExitTool' implementation directly.
    Exit tool.BaseTool

    // OutputKey stores the agent's response in the session.
    // Optional. When set, stores output via AddSessionValue(ctx, outputKey, msg.Content).
    OutputKey string

    // MaxIterations defines the upper limit of ChatModel generation cycles.
    // The agent will terminate with an error if this limit is exceeded.
    // Optional. Defaults to 20.
    MaxIterations int
}

type ToolsConfig struct {
    compose.ToolsNodeConfig

    // Names of the tools that will make agent return directly when the tool is called.
    // When multiple tools are called and more than one tool is in the return directly list, only the first one will be returned.
    ReturnDirectly map[string]bool
}

type GenModelInput func(ctx context.Context, instruction string, input *AgentInput) ([]Message, error)
  • Name: agent name
  • Description: agent description
  • Instruction: system prompt when calling ChatModel; supports f‑string rendering
  • Model: ToolCallingChatModel is required to support tool calls
  • ToolsConfig: tool configuration
    • Reuses Eino Graph ToolsNodeConfig (see: Eino: ToolsNode & Tool Guide).
    • ReturnDirectly: after calling a listed tool, ChatModelAgent exits immediately with the result; if multiple tools are listed, only the first match returns. Map key is the tool name.
  • GenModelInput: transforms Instruction and AgentInput to ChatModel messages; default:
    1. Prepend Instruction as a System Message to AgentInput.Messages
    2. Render SessionValues variables into the message list
  • OutputKey: stores the final message’s content into SessionValues under OutputKey
  • MaxIterations: upper bound on the ReAct loop; default 20
  • Exit: special tool that causes immediate agent termination when invoked; ADK provides a default ExitTool implementation:
type ExitTool struct{}

func (et ExitTool) Info(_ context.Context) (*schema.ToolInfo, error) { return ToolInfoExit, nil }

func (et ExitTool) InvokableRun(ctx context.Context, argumentsInJSON string, _ ...tool.Option) (string, error) {
    type exitParams struct { FinalResult string `json:"final_result"` }
    params := &exitParams{}
    err := sonic.UnmarshalString(argumentsInJSON, params)
    if err != nil { return "", err }
    err = SendToolGenAction(ctx, "exit", NewExitAction())
    if err != nil { return "", err }
    return params.FinalResult, nil
}

ChatModelAgent Transfer

ChatModelAgent implements OnSubAgents. After SetSubAgents, it adds a Transfer Tool and instructs the model to call it with the target agent name when transfer is needed:

const TransferToAgentInstruction = `Available other agents: %s

Decision rule:
- If you're best suited for the question according to your description: ANSWER
- If another agent is better according its description: CALL '%s' function with their agent name

When transferring: OUTPUT ONLY THE FUNCTION CALL`

Transfer Tool sets a Transfer Event to jump to the target Agent; then ChatModelAgent exits. – Agent Runner receives the Transfer Event and switches execution to the target Agent.

ChatModelAgent AgentAsTool

Convert an agent to a tool when clear input suffices:

// github.com/cloudwego/eino/adk/agent_tool.go
func NewAgentTool(_ context.Context, agent Agent, options ...AgentToolOption) tool.BaseTool

Register the converted Agent tool in ToolsConfig so ChatModelAgent can decide when to call it.

ChatModelAgent Usage Example

Scenario

Create a book recommendation Agent that can recommend relevant books based on user input.

Implementation

Step 1: Define the tool

type BookSearchInput struct {
    Genre     string `json:"genre" jsonschema:"description=Preferred book genre,enum=fiction,enum=sci-fi,enum=mystery,enum=biography,enum=business"`
    MaxPages  int    `json:"max_pages" jsonschema:"description=Maximum page length (0 for no limit)"`
    MinRating int    `json:"min_rating" jsonschema:"description=Minimum user rating (0-5 scale)"`
}

type BookSearchOutput struct {
    Books []string
}

func NewBookRecommender() tool.InvokableTool {
    bookSearchTool, err := utils.InferTool("search_book", "Search books based on user preferences", func(ctx context.Context, input *BookSearchInput) (output *BookSearchOutput, err error) {
       // search code
       // ...
       return &BookSearchOutput{Books: []string{"God's blessing on this wonderful world!"}}, nil
    })
    if err != nil {
       log.Fatalf("failed to create search book tool: %v", err)
    }
    return bookSearchTool
}

Step 2: Create ChatModel

func NewChatModel() model.ToolCallingChatModel {
    ctx := context.Background()
    apiKey := os.Getenv("OPENAI_API_KEY")
    openaiModel := os.Getenv("OPENAI_MODEL")

    cm, err := openai.NewChatModel(ctx, &openai.ChatModelConfig{
       APIKey: apiKey,
       Model:  openaiModel,
    })
    if err != nil {
       log.Fatal(fmt.Errorf("failed to create chatmodel: %w", err))
    }
    return cm
}

Step 3: Create ChatModelAgent

func NewBookRecommendAgent() adk.Agent {
    ctx := context.Background()

    a, err := adk.NewChatModelAgent(ctx, &adk.ChatModelAgentConfig{
       Name:        "BookRecommender",
        Description: "An agent that can recommend books",
        Instruction: `You are an expert book recommender. Based on the user's request, use the "search_book" tool to find relevant books. Finally, present the results to the user.`,
        Model:       NewChatModel(),
        ToolsConfig: adk.ToolsConfig{
           ToolsNodeConfig: compose.ToolsNodeConfig{
              Tools: []tool.BaseTool{NewBookRecommender()},
           },
        },
    })
    if err != nil {
       log.Fatal(fmt.Errorf("failed to create chatmodel: %w", err))
    }

    return a
}

Step 4: Run via Runner

runner := adk.NewRunner(ctx, adk.RunnerConfig{ Agent: a })
iter := runner.Query(ctx, "recommend a fiction book to me")
for {
    event, ok := iter.Next(); if !ok { break }
    if event.Err != nil { log.Fatal(event.Err) }
    msg, err := event.Output.MessageOutput.GetMessage()
    if err != nil { log.Fatal(err) }
    fmt.Printf("\nmessage:\n%v\n======", msg)
}

Run Result

message:
assistant:
tool_calls:
{Index:<nil> ID:call_o2It087hoqj8L7atzr70EnfG Type:function Function:{Name:search_book Arguments:{"genre":"fiction","max_pages":0,"min_rating":0}} Extra:map[]}

finish_reason: tool_calls
usage: &{140 24 164}
======


message:
tool: {"Books":["God's blessing on this wonderful world!"]}
tool_call_id: call_o2It087hoqj8L7atzr70EnfG
tool_call_name: search_book
======


message:
assistant: I recommend the fiction book "God's blessing on this wonderful world!". It's a great choice for readers looking for an exciting story. Enjoy your reading!
finish_reason: stop
usage: &{185 31 216}
======

ChatModelAgent Interrupt & Resume

Introduction

ChatModelAgent uses Eino Graph internally, so the agent reuses Graph’s Interrupt & Resume capability.

– On interrupt, a tool returns a special error to trigger Graph interrupt and emit custom info; on resume, Graph reruns this tool:

// github.com/cloudwego/eino/adk/interrupt.go

func NewInterruptAndRerunErr(extra any) error

– On resume, pass custom tool.Options to supply extra info to tools:

import (
    "github.com/cloudwego/eino/components/tool"
)

type askForClarificationOptions struct { NewInput *string }
func WithNewInput(input string) tool.Option {
    return tool.WrapImplSpecificOptFn(func(t *askForClarificationOptions) { t.NewInput = &input })
}

Example

Add ask_for_clarification tool that interrupts until new input is provided, then resumes and continues.
